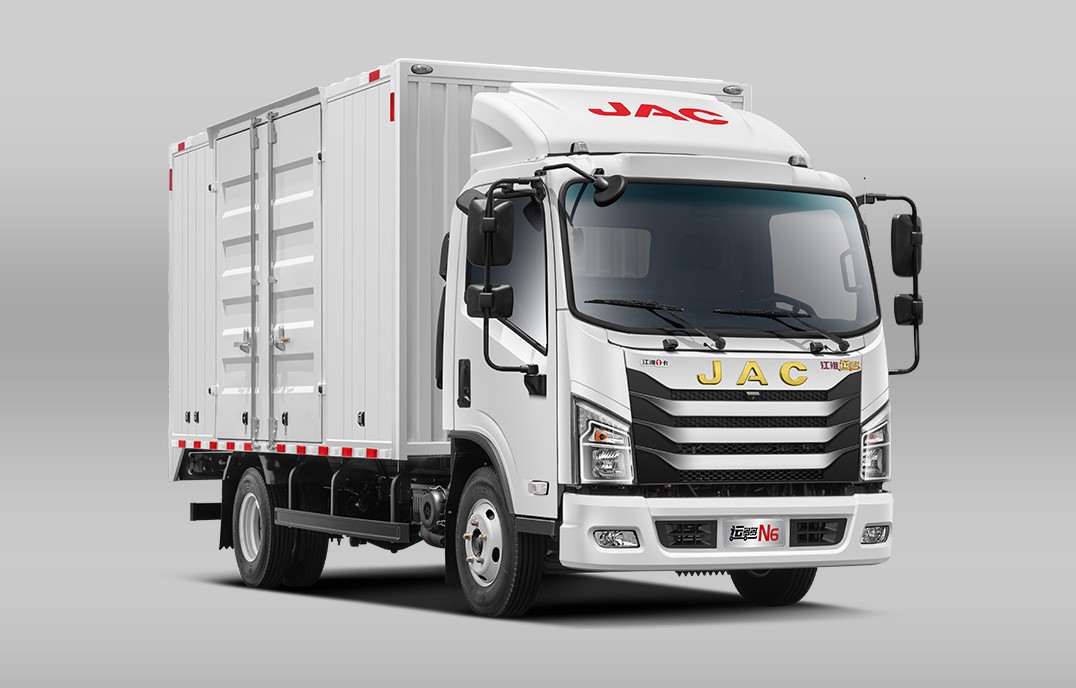

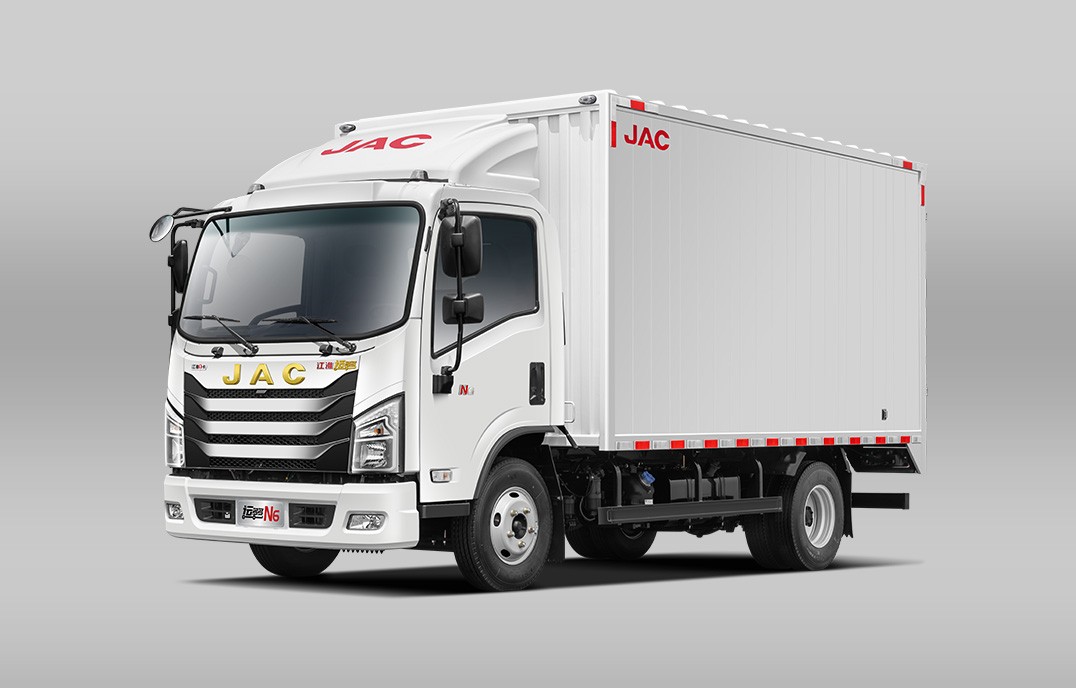

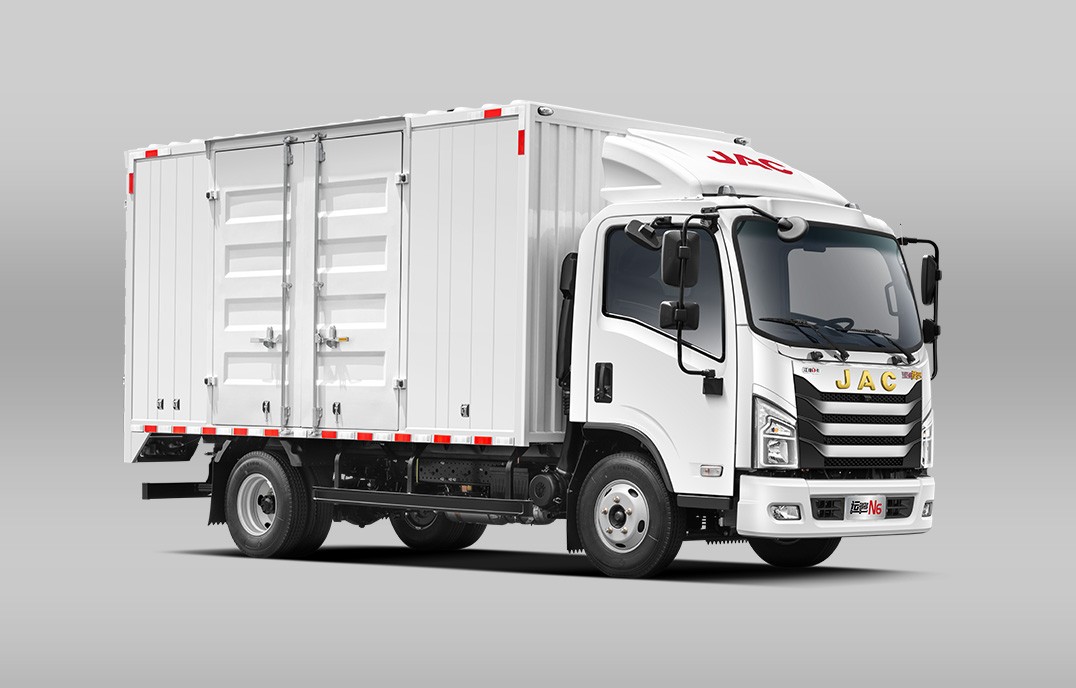

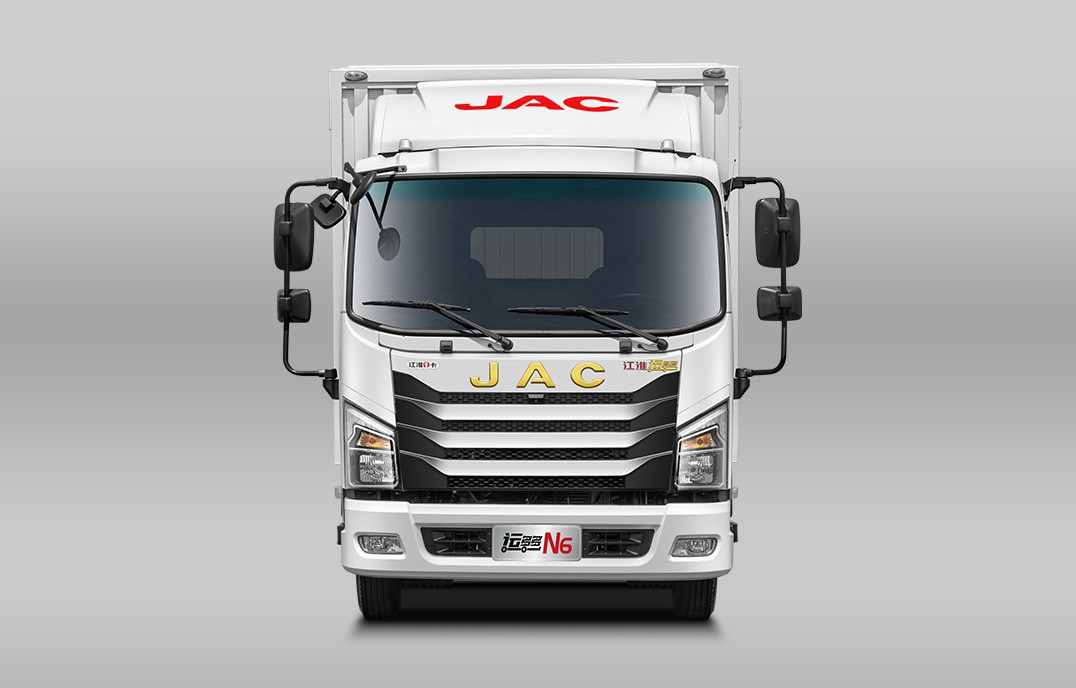

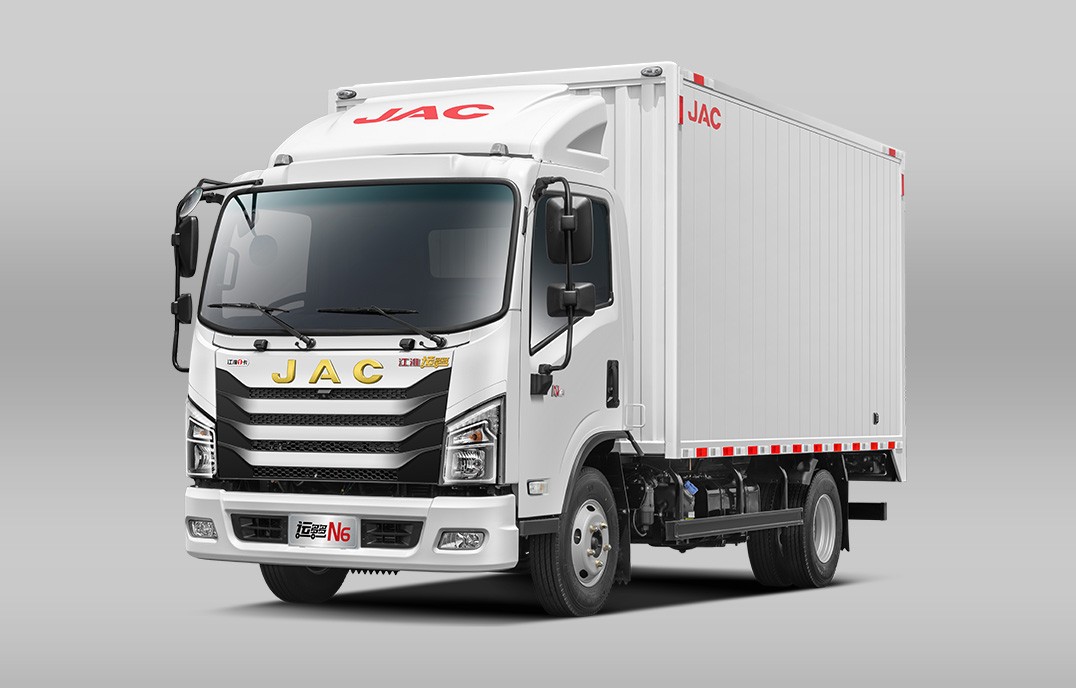

| 运多多N6参数配置表 | |||||||
| 车型 | 运多多N6 | ||||||
驾驶室宽度(mm) | 1921 | 1921 | 1921 | 1921 | 1921 | 1921 | |
驾驶室形式 | 单排/排半 | 单排/排半 | 单排/排半 | 单排/排半 | 单排/排半 | 单排/排半 | |
| 轴距(mm) | 2850 | 3365 | 3365 | 3365 | 3365 | 3365 | |
| 发动机参数 | 发动机型号 | HFC4DF140 | Q23-132E60 | HFC4DF140 | D25TCIF1 | HFC4DE3-2E9 | YN25PLUS1 |
功率(Kw/rpm) | 101/3000 | 97/3000 | 101/3000 | 110/3000 | 117/2900 | 105/3000 | |
| 扭矩(Nm/rpm) | 320/1100-3000 | 320/1400-2400 | 320/1100-3000 | 400/1400-2400 | 458/1400-2200 | 400/(1300-2400) | |
| 上装尺寸 | 栏板尺寸(mm) | 3700/3430*1900/2010/2100*400 | 4150/3850*2100*400 | 4150/3850*2100*400 | 4150/3850*2100*400 | 4150/3850*2100*400 | 4150/3850*2100*400 |

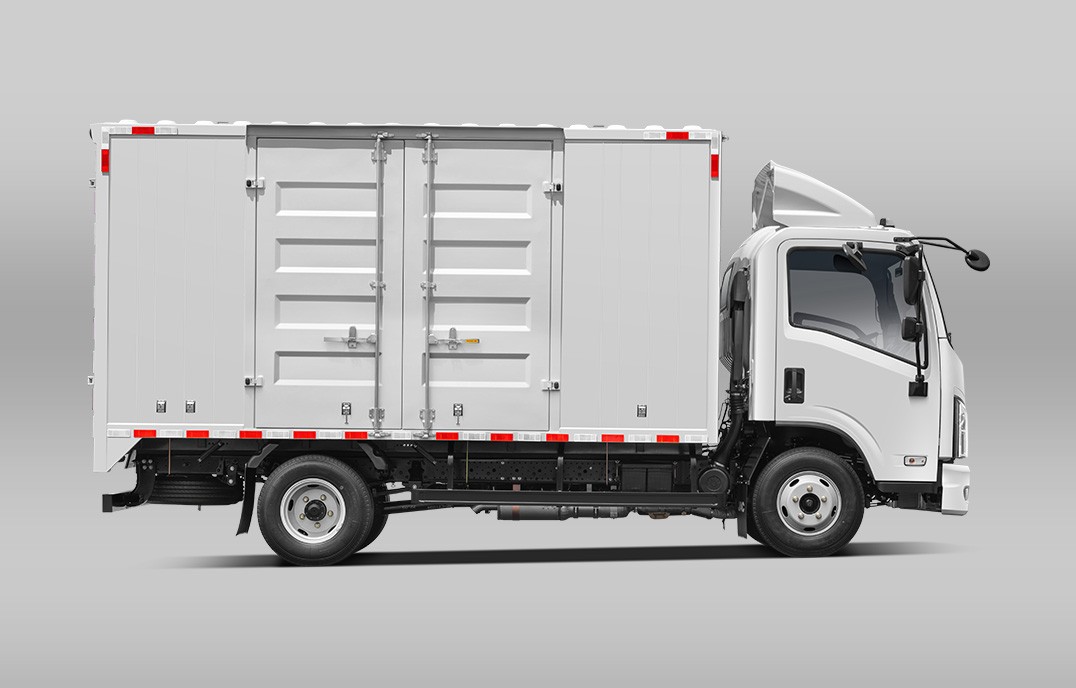

箱车尺寸(mm) | 3680/3400*2100*2200 | 4120/3820*2100*2200 | 4120/3820*2100*2200 | 4120/3820*2100*2200 | 4120/3820*2100*2200 | 4120/3820*2100*2200 | |
仓栅尺寸(mm) | 3700/3430*1900/2010/2100*400 | 4150/3850*2100*400 | 4150/3850*2100*400 | 4150/3850*2100*400 | 4150/3850*2100*400 | 4150/3850*2100*400 | |
| 冷藏尺寸(mm) | 3700*2100*2200 | 4030/3700*2100*2200 | 4030/3700*2100*2200 | 4030/3700*2100*2200 | 4030/3700*2100*2200 | 4030/3700*2100*2200 | |
| 底盘配置 | 变速箱 | WLY5G32C | WLY5G32C | WLY5G32C/WLY6TS40B | WLY6TS40B/C8J45TB | ML645B/C8J50TB | WLY6TS40B/WLY8G45B |
板簧参数 | 4/5+64/4+2 | 4/5+64/4+2 | 4/5+64/4+2 | 4/5+64/4+2 | 4/5+64/4+2 | 4/5+64/4+2 | |
工字梁前桥 | ● | ● | ● | ● | ● | ● | |
自调臂+ABS | ● | ● | ● | ● | ● | ● | |
动转+离合助力 | ● | ● | ● | ● | ● | ● | |
铁油箱 | ●(85L) | ●(100L) | ●(100L) | ●(100L) | ●(100L) | ●(100L) | |
| 塑料油箱 | ○(85L) | ○(100L) | ○(100L) | ○(100L) | ○(100L) | ○(100L) | |
制动形式 | 气压鼓式 | 气压鼓式 | 气压鼓式 | 气压鼓式 | 气压鼓式 | 气压鼓式 | |
| 断气刹 | ● | ● | ● | ● | ● | ● | |
| 轮胎 | 6.50R16 | ○ | ○ | ○ | ○ | ○ | ○ |
| 7.00R16 | ● | ● | ● | ● | ● | ● | |
| 车身配置 | 金属漆 | ● | ● | ● | ● | ● | ● |

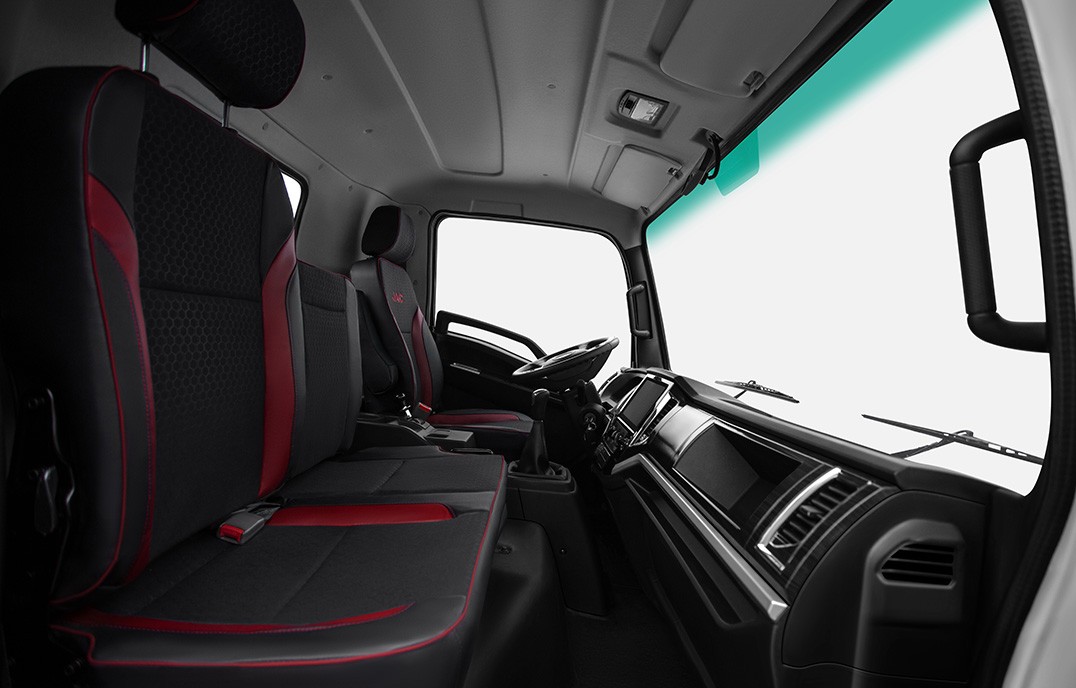

全包内饰 | ● | ● | ● | ● | ● | ● | |
空调 | ● | ● | ● | ● | ● | ● | |
MP3+USB接口 | ● | ● | ● | ● | ● | ● | |
多功能液晶仪表 | ● | ● | ● | ● | ● | ● | |
MP5+倒车影像 | ○ | ○ | ○ | ○ | ○ | ○ | |
蓝牙电话 | ○ | ○ | ○ | ○ | ○ | ○ | |
电动门窗+中控锁 | ● | ● | ● | ● | ● | ● | |
多功能方向盘 | ● | ● | ● | ● | ● | ● | |
定速巡航 | ● | ● | ● | ● | ● | ● | |
LED日间行车灯+雾灯 | ● | ● | ● | ● | ● | ● | |
框架式后视镜 | ● | ● | ● | ● | ● | ● | |
无骨雨刷 | ● | ● | ● | ● | ● | ● | |
双电瓶 |
